Quick opening closure

RC3

MAIN CHARACTERISTICS of
Quick opening closure RC3

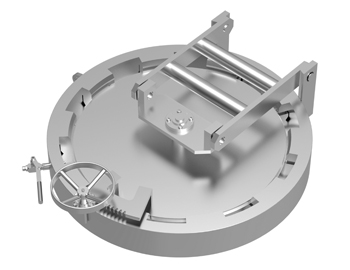

RC 3 quick opening closure is a mechanical unit that facilitates rapid and safe access to vessels internal components and that provides perfect tightness.
RC 3 quick opening closure is fitted with a clamping teeth and a safety device that prevents the door from beeing unlocked under pressure.
CE Certificate according to PED 97/23/EC

TECHNICAL CHARACTERISTICS Nominal diameter: DN 100 ÷ DN 1600
Nominal pressure: PN 6 ÷ PN 400 bar
Model:
- by installation position
H – for horizontal vessels
V – for vertical vessels
- by material type
S – standard material
J – low temperature service materials
OPERATING CONDITIONS Ambient temperature: -20 ÷ 80 (optionally, -30 ÷ 80)°C
Working fluid temperature: -10 ÷ 60 (optionally, -20 ÷ 60)°C
WORKING MEDIUM Natural gas or other non-corrosive gases
