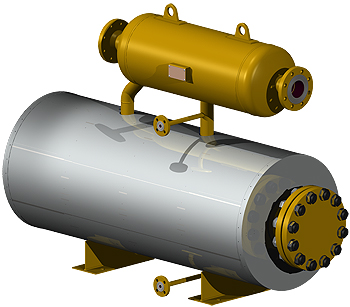

STG 653 horizontal gas separator is designed to remove and collect solid and liquid impurities existent in the gas flow in order to protect the pipelines, equipment and devices which could be damaged because of particle-contaminated gas.
The STG 653 is a welded construction vessel, provided with an axial cyclone in order to separate impurities. It can be used in the gas regulating and metering stations, gas delivery stations, gas dehydration units, compressor stations etc
Reference standard: EN 13445 or ASME BPVC Sec. VIII
CE certificate according to PED 97/23/EC
Code ASME Sec. VIII Div. 1 (ASME "U" stamp)
| MODEL | STG 653 |
|---|---|
| TECHNICAL CHARACTERISTICS |
Body nominal diameter: DN 200 ÷ DN 600 Efficiency: - solid impurities: 99 % > 15 µm - liquid particles: 99 % > 10 µm |
| CONNECTION TYPE |
Nominal pressure: PN 16 ÷ PN 100 bar Nominal diameter: DN 25 ÷ DN 300 |
| OPTIONAL ACCESSORIES |
Automatic drain device Level indicator |
| OPERATING CONDITIONS |
Ambient temperature: -20 ÷ 80 (optionally, -30 ÷ 80)°C Working fluid temperature: -10 ÷ 60 (optionally, -20 ÷ 60)°C |
| WORKING MEDIUM | Natural gas or other non-corrosive gases |
