FTG 600 impurity filters are used in all situations that require the filtration of natural gases (gas regulation and metering stations, delivery stations) and have the role of retaining the solid particles in the gas flow.
Reference standard: EN 13445 or ASME BPVC Sec. VIII
CE certificate according to PED 97/23/EC
Code ASME Sec. VIII Div. 1 (ASME "U" stamp)

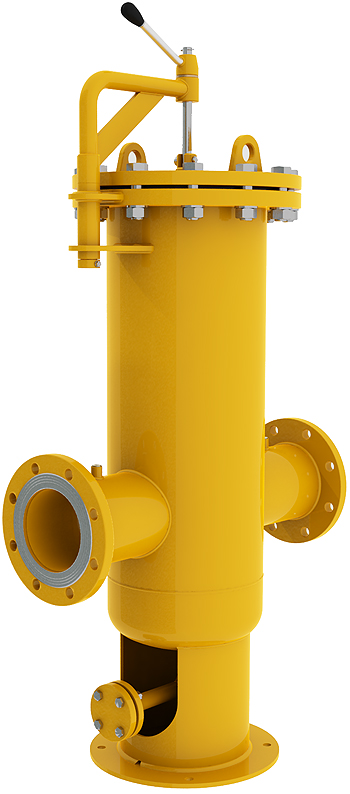

| MODEL | FTG 601 |
|---|---|
| TECHNICAL CHARACTERISTICS |
Type: filtering cartridge Inlet-outlet connection angle: 180° or 90° Filtering material: - stainless steel screen - textile (PES, PP, PPS) - cellulose Filtration rating: - 160, 300 µm - stainless steel screen - 3÷50 µm - textile (PES, PP, PPS) - 3÷50 µm - cellulose Filter pressure drop: max. 1 bar Particle collection capacity: min 12% of total filter capacity |
| CONNECTION TYPE |
Equal flanges: PN 16 ÷ PN100/ANSI Class 150 ÷ 600 Nominal diameter: DN 25 ÷ DN 500 |
| ACCESSORIES |
Drain: - manual: valve - automatic: control drainer Filter clogging degree: - differential pressure gauge - contact differential pressure gauge - differential pressure gauge with 4-20 mA signal Filter pressure: - pressure gauge Filter connection to the pipeline network: - counter flanges, gaskets, fasteners |
| OPERATING CONDITIONS |
Ambient medium temperature: -20 ÷ 80°C (optionally, -30 ÷ 80)°C Working fluid temperature: -10÷60°C (optionally, -20 ÷ 60)°C |
| WORKING MEDIUM | Natural gas or other non-corrosive gases |
